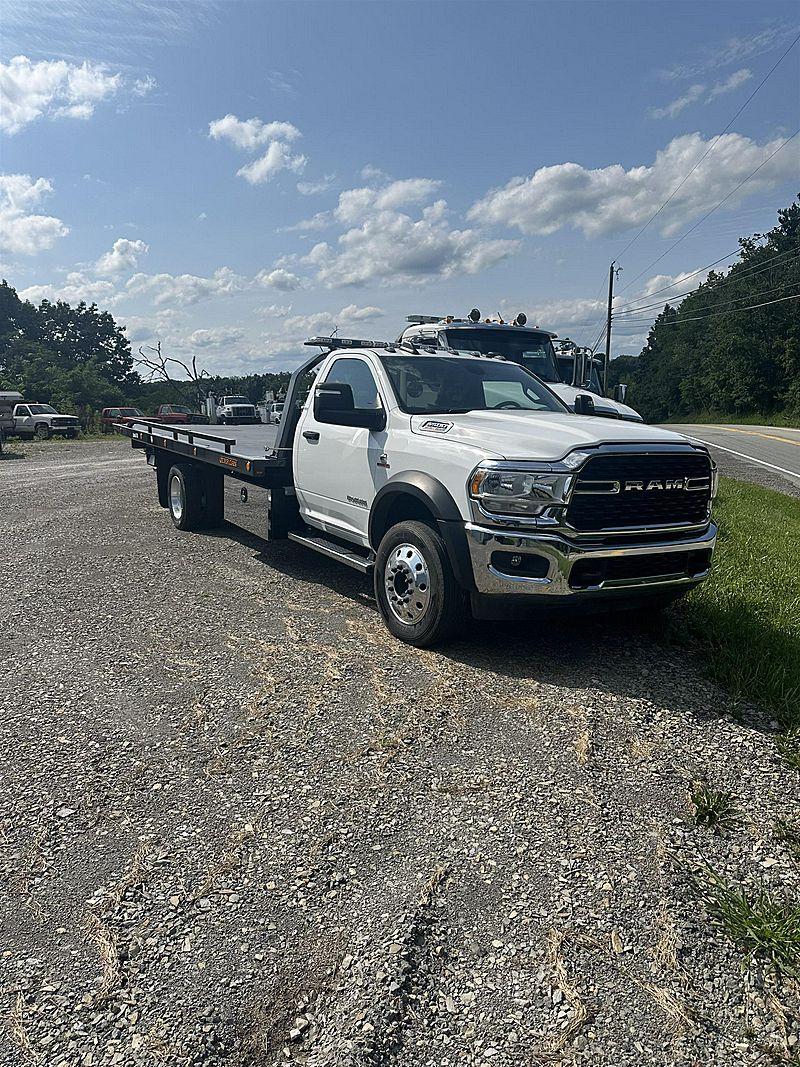

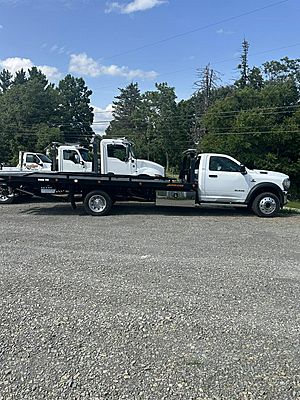

2024 RAM 5500 SLT

Jerr-Dan carriers deliver the strength, stability, and rapid hydraulics you need for more efficient loads and unloads that get you to the next job, faster.  We spec and build them better because we care about the folks working them!  We collaborate with users to come up with the best fit for their application.  Our installation team leader is an experienced Tow Boss and past operator.  All the right options to make your operator's job easier, safer and faster are included on our towing & recovery equipment!  Lots of lighting to see and be seen, extra tie-down points to secure loads fast, and options to help keep operators away from danger like wireless winch remote.

Model Carrier:  Serial:  0220034976
1 6-Ton Steel XLP

1 •Standard LED Marker Lights (5 Pair Evenly Spaced along Outside Rubrail)
1 •Standard Keyslots (2 Keyslots @ Front, 6 Keyslots Along Rubrail, 4 Keyslots Across Rear)
1 •Painted Subframe for 6-Ton Low Profile Carrier

Deck:
1 20’ Long x 102" Wide Steel Low Profile XLP Deck for Removable Rails

Decking Material (Steel Decks Only):
1 •Diamond Plate Steel, 3/16" Thick, 1-Piece, 36 KSI1Deck

Options:
1 Removable Steel Tubular Rails 5" High

Winches:
1 10,000 lb Worm Gear Winch

Winch Options:
1 Dual Manual Free Spool for 8K/10K Winch

Subframe:
1 Painted Subframe for 6-Ton Low Profile Carrier

Subframe Accessories:
1 Add Greaseable Feature to any Subframe and/or Wheel Lift Combination

Headboard:
1 37 in Fixed Height Headboard

Carrier Paint Options:
1 All Steel Components Jerr-Dan Gloss Black (Standard)|

Wheel Lifts with Painted Finish:
1 Painted 3.5K IRL w/Manual L-Arms & Galvanized Grids Ball Hitch

Lighting Options:
1 Ecco 10-Head LED Amber Light Bar
1 LED Work Lights at Rear of Subframe (Pair)

Switch Panel Options:
1 Does the Chassis have OEM

Switch Panels:
4 or 5 Function for Dodge OEM Switches

Transmission Mtd PTOs Only (Requires Hydraulic Pump Below):
1 Clutch Shift PTO for Dodge 4500/5500 Diesel Auto1

Hydraulic Pump:
1 11 Gallon-Per-Minute Hydraulic Pump

Hydraulic Tank Mounting Brackets When No Toolbox is Ordered:
1 Standard Mounting Bracket Kit

Storage Options:
2 48" Tool boxes

Miscellaneous Towing Options/Accessories:
1 High Visibility Tape Installation at Rear of Subframe
1 8-Point Tie-down Tire Strap System

Chassis Mounting Kit:
1 Chassis Mounting Kit for 4500/5500
