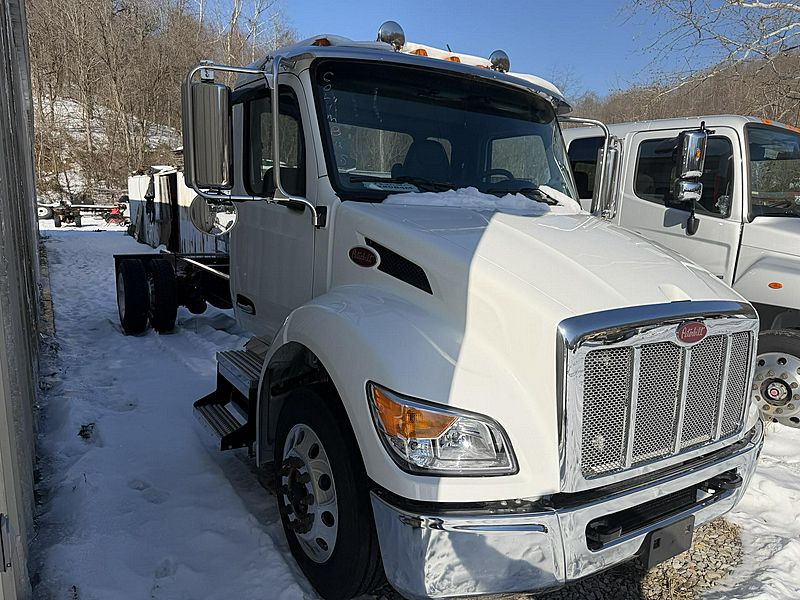

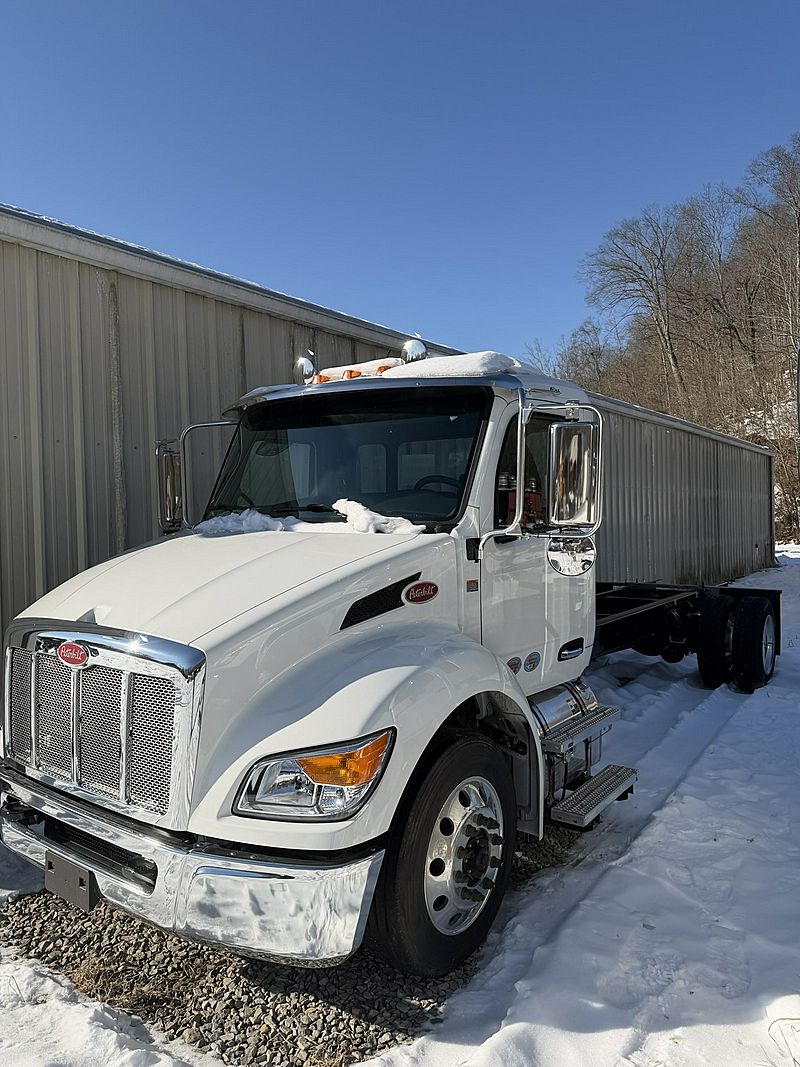

2025 Peterbilt 536

Jerr-Dan carriers deliver the strength, stability and rapid hydraulics you need for more efficient loads and unloads that get you to the next job, faster.  We spec and build them better because we care about the folks working them!  We collaborate with tow companies and our chief installer is an experienced heavy, medium and light operator.  All the right options to make your operators job easier, safer and faster are included on our towing & recovery equipment!  Lots of lighting for visibility, extra tie down points for easier loading and options to help keep operators away from danger like wireless remote.

Heavy-duty 10-Ton Steel Carriers:
Serial:

Standard Features:
1 •Steel Decking
1 •Standard LED Marker Lights (5 Pair Evenly spaced along Outside Rubrail)
1 •Standard Keyslots (1 Pair @ Front and 4 Keyslots Evenly Spaced Across Rear)

Steel Carrier Decks:
1 24’ Long x 102" Wide 10-Ton Steel Carrier

Deck Options:
4 5/8” Bolt-on D-Rings (Pair) Evenly Space on Along Outside Rail
1 Yellow Anti-slip Paint - Rubrails Only
1 Yellow Anti-slip Paint - Approach Tip Only

Winches:
1 20,000 lb Worm Gear Winch with Air Free Spool

Winch Options:
1 Cable Roller Guide for 10,000 lb Worm Gear Winch
1 Cable Tensioner
1 5/8” Weld-on D-Rings Installed Near 20,000 lb Winch (Pair)
1 LED Work Lights at Winch (Pair)

Subframes:
1 Painted Sub-frame for Standard 10-Ton Steel Carrier

Headboards:
1 45 in - 65 in Adjustable Height Headboard

Headboard Options:
1 Locking Chain Racks
1 Grab Handles for Adjustable Headboard Only
1 LED Work Lights for All Headboards (Pair)

Transporter Paint Options:
1 All Steel Components Jerr-Dan Gloss Black (Standard)

Stabilizer Options:
1 Hydraulic Rear Dock Stabilizer with Manual Pintle Hitch Mounting Plate

Lighting Options:
1 Whelen  or Fed Signal 10-Head LED Amber Light Bar
1 LED Work Lights at Rear of Subframe (Pair)

Switch Panel Options: Does your Chassis have an OEM Switch Panel?
1 5 Function In-Dash Compact Switch Panel
1 ***In-Dash Switch Panels will only be installed when dash space is available

Remote Control:
1 Wireless Remote Control (4-Operation)

Remote Control Options:
1 Buzz Box Holder for Remote Control

Hydraulic Tank mounting brackets when no Toolbox is ordered:
1 Standard Mounting Bracket Kit

Storage Options:
2 S/S 60 x 18" x 18" Tool Boxes

Miscellaneous Towing Options/Accessories:
1 Air Supply Disconnect at Rear of Subframe (Chassis Must Have Air Supply)
1 Backup Camera - Jerr-Dan Supplied Option
1 Hydraulic Oil Filter Cover Protector
1 High Visibility Tape Installation at Rear of Subframe

************************************************************************
