7
Overview

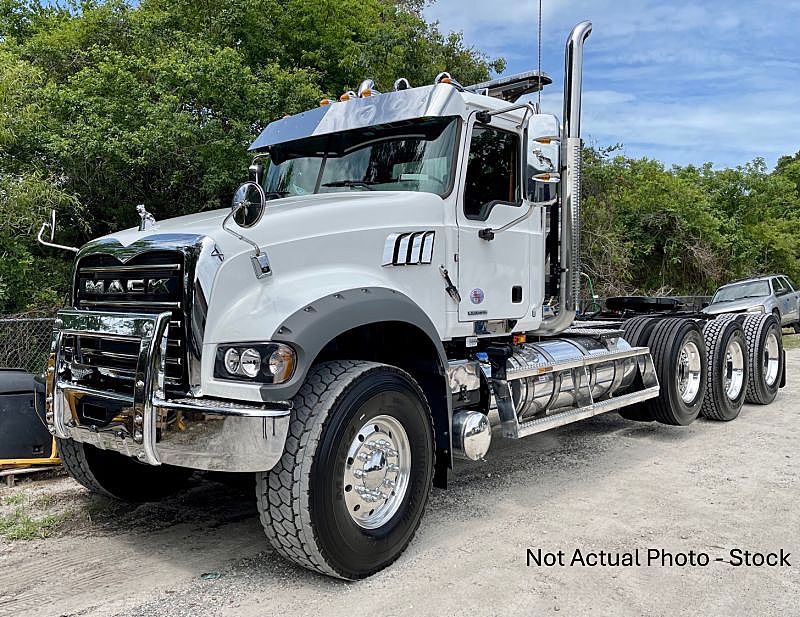

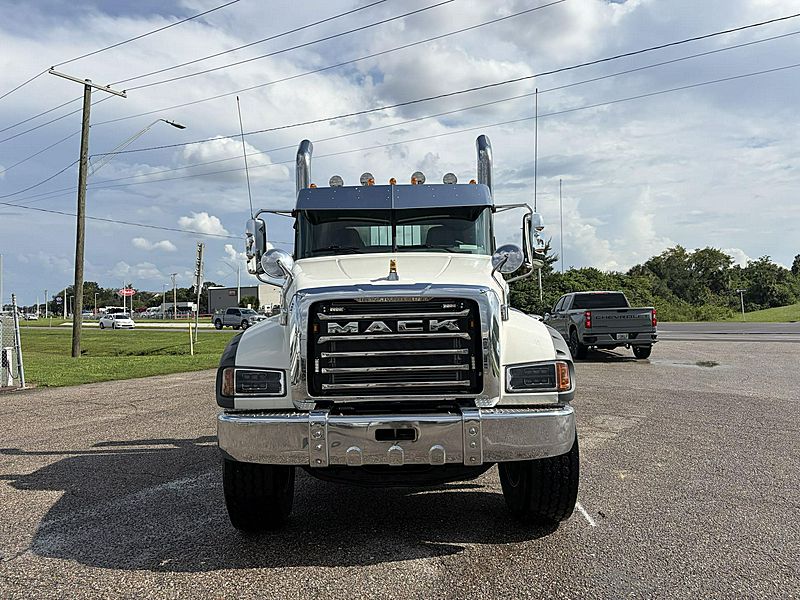

2027 Mack Granite GR84FT
- Type
- Semi Trucks / Day Cabs
- Stock#
- 03GR009363
- VIN
- 1M1GR4NYXVM009363
- Condition
- New
- Engine
- Mack 505
- Odometer
- 152
Contact Us For Price
Contact Dealer
Specifications
1M1GR4NYXVM009363
Mack
MP8-505C
505
TMD14AFO-HD
Air Ride
425/65R22.5
11R22.5
20,000
46,000
3.79
263
Aluminum
Aluminum
White
152
Additional Description
ENGINE / MOTOR MP8-505C+ MACK 505HP @ 1400-1700 RPM (PEAK) 2100 RPM (GOV) 1900 LB-FT
TRANSMISSION MACK TMD14AFO-HD mDRIVE HD 14 SP, ULTRA-LOW CREEPER/ MULTI-SPEED REVERSE(OVERDRIVE) CREEPER GEAR 32.04:1
FRONT AXLE 20000# (9100 KG) MACK FXL20 STRAIGHT SPINDLE/UNITIZED BEARINGS
BRAKES - FRONT MERITOR EX+ AIR DISC BRAKES 430MM (17") H-TYPE
REAR AXLE 46000# (20900kg) MACK S462R CAST DUCTILE IRON HOUSING (DUAL REDUCTION)
TRACTION DIFFERENTIAL INTERWHEEL DIFFERENTIAL LOCK, ALL REAR AXLES
REAR SUSPENSION AIR ADZ-246 NEWAY 46,000 lb
BRAKES - REAR MERITOR "S" CAM 16.5"x7" Q+
AUXILIARY AXLE (1) HEND. 20.0K TOUGH FMT20 FIXED/LIFTABLE PUSHER AXLE
WHEELBASE 263"
FRAME RAILS & LINERS 11.1 x 90 x 300mm - (0.437" x 3.54" x 11.81")W/ Full Liner; RBM 3,920,000 LB-IN
FIFTH WHEE AIR - HOLLAND FW70 SERIES, LH RELEASE, SEVERE DUTY SLIDER WITH 60" SLIDE
TRANSMISSION MOUNTED PTO PTR-DM, Single RH: DIN 5462 (INNER) + HYDRAULIC PUMP GP1-80 PARKER PUMP
INTERIOR TRIM LEVELS - PREFERRED TRIM PACKAGE, STEEL GRAY
FOR ADDITIONAL INFORMATION CALL HAL CLARK (813)525-6340 OR MATT EDGEMON (813)541-8074
TRANSMISSION MACK TMD14AFO-HD mDRIVE HD 14 SP, ULTRA-LOW CREEPER/ MULTI-SPEED REVERSE(OVERDRIVE) CREEPER GEAR 32.04:1
FRONT AXLE 20000# (9100 KG) MACK FXL20 STRAIGHT SPINDLE/UNITIZED BEARINGS
BRAKES - FRONT MERITOR EX+ AIR DISC BRAKES 430MM (17") H-TYPE
REAR AXLE 46000# (20900kg) MACK S462R CAST DUCTILE IRON HOUSING (DUAL REDUCTION)
TRACTION DIFFERENTIAL INTERWHEEL DIFFERENTIAL LOCK, ALL REAR AXLES
REAR SUSPENSION AIR ADZ-246 NEWAY 46,000 lb
BRAKES - REAR MERITOR "S" CAM 16.5"x7" Q+
AUXILIARY AXLE (1) HEND. 20.0K TOUGH FMT20 FIXED/LIFTABLE PUSHER AXLE
WHEELBASE 263"
FRAME RAILS & LINERS 11.1 x 90 x 300mm - (0.437" x 3.54" x 11.81")W/ Full Liner; RBM 3,920,000 LB-IN
FIFTH WHEE AIR - HOLLAND FW70 SERIES, LH RELEASE, SEVERE DUTY SLIDER WITH 60" SLIDE
TRANSMISSION MOUNTED PTO PTR-DM, Single RH: DIN 5462 (INNER) + HYDRAULIC PUMP GP1-80 PARKER PUMP
INTERIOR TRIM LEVELS - PREFERRED TRIM PACKAGE, STEEL GRAY
FOR ADDITIONAL INFORMATION CALL HAL CLARK (813)525-6340 OR MATT EDGEMON (813)541-8074
