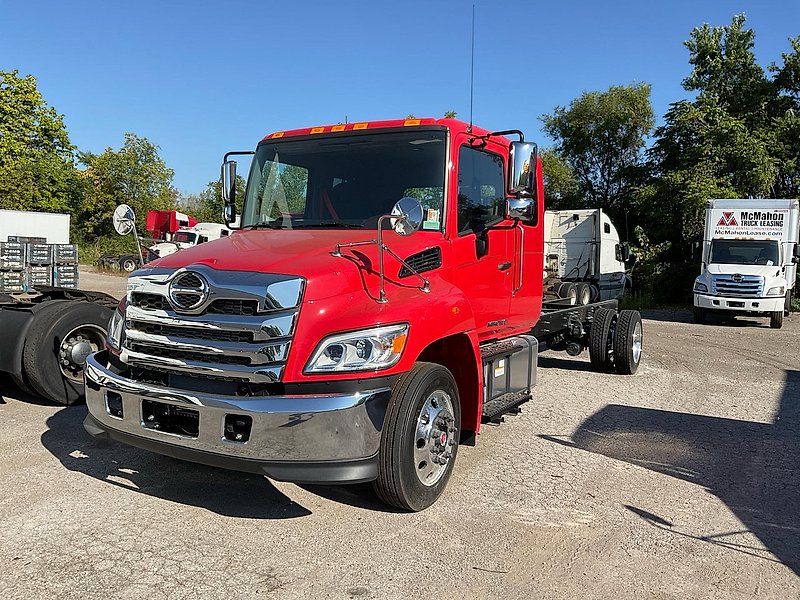

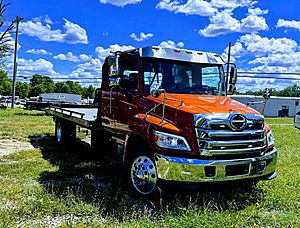

2025 Hino L6-25,950 Ext

Jerr-Dan carriers deliver the strength, stability, and rapid hydraulics you need for more efficient loads and unloads that get you to the next job, faster.  We spec and build them better because we care about the folks working them!  We collaborate with users to come up with the best fit for their application.  Our installation team leader is an experienced Tow Boss and past operator.  All the right options to make your operator's job easier, safer and faster are included on our towing & recovery equipment!  Lots of lighting to see and be seen, extra tie-down points to secure loads fast, and options to help keep operators away from danger like wireless winch remote.


Model Carrier:  Serial:  0220032450
1 6-Ton Steel XLP

Standard Features:
1 Standard LED Marker Lights (5 Pair Evenly Spaced along Outside Rubrail)
1 Standard Keyslots (2 Keyslots @ Front, 6 Keyslots Along Rubrail, 4 Keyslots Across Rear)
1 Painted Subframe for 6-Ton Low Profile Carrier

Deck:
1 22’ Long x 102" Wide Steel Low Profile XLP Deck w/Tubular Removable Rails

Decking Material:
1 Smooth Plate Steel, 3/16" Thick, 1-Piece, 36 KSI

Deck Options:
1 Removable Steel Tubular 5" High
1 10,000 lb Worm Gear Winch
1 Yellow Anti Slip Paint Outside Rail
1 Deck Approach Tip Rollers

Winch Options:
1 Air Free Spool 10K Winch
1 5/8" Weld-on D-Rings Installed Near Winch (Pair)
1 LED Work Lights Abreast of Winch (Pair)

Subframe:
1 Painted Subframe for 6-Ton Low Profile Carrier

Subframe Accessories:
1 Hydraulic Oil Filter Cover Protector
1 Greased Pivot Joints

Headboard:
1 45 in - 65 in Adjustable Height Headboard

Headboard Options:
1 Locking Chain Racks
1 Grab Handle for Adjustable Headboard (Pair)
1 LED Work Light on Headboard (Pair)

Wheel Lift with Painted Finish:
1 Painted 3.5K IRL w/Manual L-Arms & Galvanized Grids w/2" Reese Receiver

Wheel Lift Options:
1 Cam Locks

Lighting Options:
1 Whelen/Fed Signal 10-Head LED Amber Light Bar
1 LED Work Lights at Rear of Subframe (Pair)
1 RAIL Lighting System (Rear Awareness Indicator Lights)

Switch Panel Options:
1 5 Function In-Dash Compact Switch Panel

Transmission Mtd PTO:
1 Clutch Shift PTO (Generic)

Hydraulic Pump:
1 11 Gallon-Per-Minute Hydraulic Pump

Remote Controls:
1 Wireless Remote Control (1-Operation)

Remote Control Options:
1 Buzz Box Holder for Remote Control

Hydraulic Tank Mounting Brackets When No Toolbox is Ordered:
1 Standard Mounting Bracket Kit

Storage Options:
2 S/S 60" x 18" Tool Boxes

Miscellaneous Towing Options/Accessories:
1 Air Supply Disconnect at Rear of Subframe
1 Backup Camera - JD Supplied Option
1 High Visibility Conspicuity Tape At Rear
1 Jerr-Dan Standard Tie Down Package
1 8 Point Tied Down
1 Wireless Magnetic Tow Lights

Miscellaneous Chassis Related Options/Accessories:
1 Chassis Mounting Kit (Generic)

***************************************************************
