Overview

2024 Kenworth T380

Type
Wrecker
Stock#
A394C/A034B
VIN
2NK4HJ7X5RM347213
Condition
New
Engine
Cummins 360

Contact Us For Price
Request Internet Price Get Financing
Contact Dealer

Contact Dealer

Message Sent!

Specifications

2NK4HJ7X5RM347213
Cummins
PX-9
360
Allison
300RDS
Hendrickson
22.5x8.25
22.5x8.25
Single
12,500
23000
4.56
262
Aluminum
Aluminum
6
Yes
White
Diesel
50
Hendrickson 23K
HAS230L
Automatic
No
50,000
32,000
Whelen 60" Wing Lights

Additional Features

Air Conditioning
Aluminum Tanks
Chrome Bumper
Chrome Exhaust
Cruise Control
Double Frame 10 5/8
Dual Air Cleaners
Heated Mirrors
NAVplus HD navigation system
Power Door Locks
Power Mirrors
Power Steering
Power Windows
Rider seat:KW tool box
rider seat:KW toolbox seat
Tilt/Telescopic Wheel
Visor

Additional Description

With innovative tool storage and unmatched performance, the 25 Ton JFB Integrated Wrecker is “best-in-class” in towing and recovery. Fabricated boom and underlift equipment provide the high strength demanded by today’s heavy duty tasks. The 5-inch steel crossbar center pin coupled with the steel bushing are unparalleled in service life. Interchangeable tool compartments and optimized rigging management provide for an extremely efficient and entirely customizable interior. Why? So you can organize it your way.  Combined with Kenworth you have a nimble HD wrecker to handle all your in city and short haul tow business safely, efficiently and economically!

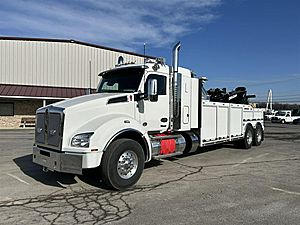

Pics are finished sample pics with Lift Added (Not actual truck)  Body comes with red steel and delivered as single axle)

Equipment:  Serial:  0230011034
1 25T INT

Features:
1 •2-Section High-Strength Hydraulic Boom
1 •Telescoping Rear Stabilizer with Integrated Flip-down Spade Feet
1 •Eight Rear Recovery Anchor Points at Rear of Subframe
1 •3-Location Multiplex Electrical Controls
1 •2-Location Multiplex Air Controls
1 •Hydraulic Reservoir with Sight Gauge
1 •Recessed Glad Hands and 7-Pin Connectors
1 •Passenger Side Hydraulic Pressure Gauges
1 •LED Lighted Steps and Grab Handles for Nighttime Tailboard Access
1 •Diamond Tread & Anti-skid Surfaces for Service Access to Top of Body
1 •Frame Forks (Set) with Storage in Base Body, to include:
     1 ▪Chain Hook Adapters with Clevis Pins and Cotter Keys (Qty 2)
     1 ▪Frame Fork Adapter Casting with Zinc Coated T-Handle (RH)
     1 ▪Frame Fork Adapter Casting with Zinc Coated T-Handle (LH)
     1 ▪Spring Lift Brackets with Hitch Pins (Qty 2)
     1 ▪3.00 Short Fork Casting (Qty 2)
     1 ▪3.00 Medium Fork Casting (Qty 2)
     1 ▪4.50 Medium Fork Casting (Qty 2)
     1 ▪4.50 Long Fork Casting (Qty 2)
     1 ▪Hitch Pins (Qty 2)1▪Heavy-duty Tie-Down Straps (Pair)

139" CA Base Body:
1 Single axle Base Body with Painted Roll-up Doors:
1 Position A - Tunnel Toolbox:15
1 " Tunnel with Painted Roll-up Doors
1 Position B - Tunnel Toolbox
1 51" Tunnel with Painted Roll-up Doors

RECOVERY BOOM-INTEGRATED 2-SECTION EXTENDABLE RECOVERY BOOM
1 Boom Rating – Retracted: 50,000 lbs. @ 30* / Extended: 16,000 lbs.
1 Boom Reach – Extended: 134” @ 0*

Boom Winch:
1 Dual DP 25K Planetary Winches for 5/8" Wire Rope

Boom Winch Wire Rope:
1 Wire Rope Galvanized 5/8" Diameter x 250' EIPS with Swivel Hooks (Qty 2)

Boom Winch Options:
1 Winch Camera Kit (Rear Winch Mounted w/PS Control Station Monitor)
1 Optional Driver Side Monitor Add-on (Must Include Above Winch Camera Kit)

Underlift Options:
1 320UL,3-Stage under lift W-Handheld Remote
1 32,000 lb Retracted 15,000 Ext for JD25INT (131" Reach)

Diamond Plate Dress-up Kits Options:
1 Diamond Plate with Marker Lights (Pair) for Front of any Tunnel Toolbox:

Battery Option:
1 Battery Relocation Hardware (Required to relocate truck batteries to JFB Tunnel)

Back-up Alarm Options:
1 Back Up Alarm

Lighting Options:
1 Whelen Amber LED 60" Light Bar
1 Lower Hook-up Lights LED (Pair)1Upper Hook-up Lights LED (Pair)
1 Upper Work Lights LED (Pair) (Requires Pylon Wing Lights/Brackets)
1 Underlift Light LED
1 Strobe Light Kit (1-Pair Front/1-Pair Rear/1-Pair Left Body Side/1-Pair Right Body Side)

In-Cab Floor Mounted Switch Panel Options:
1 Switch Panel for Lighting & Underlift - Generic Chassis

Light Pylon Options:
1 22" Whelen LED Amber Wing Lights with Mounting Brackets (Pair)
1 Pylon Dress-up Kit with Polished Finish

Wireless Controls:
1 6-Function Non-Proportional Wireless Remote

Driver Side Hydraulic Gauges
1 Color Coded Winch Control Handles:
     1•Left Hand Main Winch - Green
     1•Right Hand Main Winch - Blue

Paint Options:
1 White

Jerr-Dan Boom Logo Options:

Power Take-off (PTO) Options:
1 Air Shift PTO
1 17 GPM Pump

Tow Options:

JFB Storage Solution Options:
1 Bronze Plus Series Storage with 14K Bus Arm Towing Package
    1  '-25,000 Tire Lift/Bus Arms w/Bus Arm and Ratchet Strap Storage Solution
    1 '-5th Wheel Attachment and Storage Solution
    1 '-Pintle Hitch with 2" or 50mm Ball
    1 Tool Drawer
    1 Stationary Chain Rack
    1 Snatch Block Storage
    1 Chain Binder Storage
    1 Shackle Rack
    1 Stationary Shelf
    1 Tow Light Storage

********************************************************************************
Paul Blackston,
Vocational Segment Manager, Towing, Heavy Haul and Waste Refuse
Email:  pblackston@mcmahontrucks.com
C:  (740) 215-9012
**********************************************************************************

McMahon Truck Centers - Columbus
