2026 Kalyn Siebert KSHRG-3-55T

Type: Lowboy
Stock#: KSHRG-3-55T_BMTowing
Condition: New
Engine

Make Offer

Request Price

Request Internet Price Get Financing

Contact Dealer

Subject

Notify Me of Price Drops Message & data rates may apply.

Message Sent!

McMahon Truck Centers - Columbus

1305 US-42 - London, OH

(740) 206-2121

View Our Other Trailers

Specifications

Suspension Type Air Ride

Rear Tire Size 275/70 R 22.5 (16-PR Low Profile )

GVWR 110,000

Rear Wheels Aluminum Outers

Frame Material T1

Brakes Air

Length 53' - 58'

Width 102

Suspension Make Ridewell

# Axles 4

Axle Capacity 25000

Tonnage 55

Gooseneck Hydraulic

Gooseneck Cylinders 3

Kingpin Drop-In

Well Length 26'

Outriggers Swing Out

Additional Description

We created our Hydraulic Removable Gooseneck trailers specifically for the safe and efficient front-loading of wheeled and tracked equipment. Every aspect of the design and construction of these trailers allows you to maximize your capacity and handle the demands of challenging load conditions with ease including heavy-duty construction, lower center of gravity for added stability and multi-axle configurations that meet all weight limits from a 55 Ton capacity

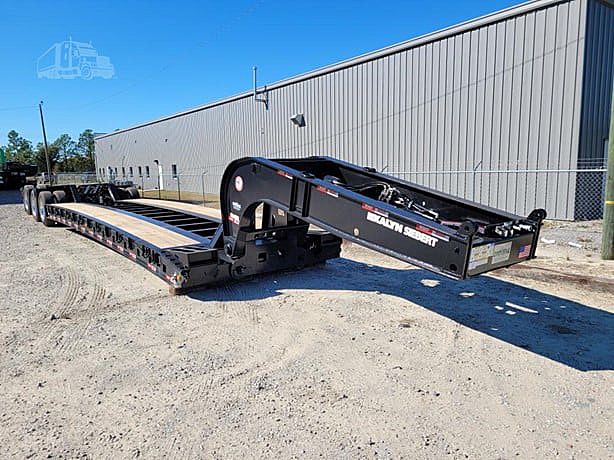

Not actual unit photo. For product visualization purposes.

TRAILER MODEL: SHRG-3-55T
Net Capacity: 55 Tons in 12 ft of Deck Length

Nominal Dimension: OAL 53 ft Width 8.5 ft

Capable of 4th axle inline and 3+1 set up Suspension: Ridewell or Equivalent air ride with Oil Seals

GOOSENECK:
Hydraulic Detachable Gooseneck 5 Position Adjustable Neck
49" Loaded 5th Wheel Height, 15" Setting, 2" King pin
Narrow neck, Chain Hanging provision in inner neck area
Two position King Pin at 96" & 108" Swing, Front lugs for 24" Flip
PTO Powered: Two main & One lift arm cylinders
Air Activated, Self Locking Pin on Gooseneck (Positive Lock)

DECK:
26 ft Deck Length with 8.5 ft Width deck
20 in Loaded Deck Height, 6" Loaded Ground Clearance
Full Depth Cambered Deck Beams
4 Beam design - 100,000 psi yield flanges & 80,000 web minimum
I-Beam Cross members on (approx.) 24" Centers
2" Nominal Apitong Decking with Open Center
Bolt and Clips used to secure decking on every other cross member
D Rings: 6 Pair on Outer deck & 2 inner main deck
Outriggers: 13 Pair Swing out + 1 Pair Heavy duty hook on at front
Front Flip Ramps for loading, Expanded tool tray 4' long
Bucket Well: Recessed last 3 center cross members

REAR SECTION:
Three, 5" round, 5/8" wall 25000# nominal capacity
Suspension: Ridewell or Equivalent air ride with Oil Seals
54.5" axle spacing, Open wheel wells
Rear axle equipped with air lift, Auto Slack Adjusters
16-1/2" x 7" Air, Parking Brakes on center axle
Hub: 10 Stud, Hub Piloted, Long studs, Cast Drums
275/70 R 22.5 (16-PR Low Profile ) Tires on Steel Wheels
Automatic/ Manual ride height control with dump valve & Air Gauge
V style Boom trough
Rear lugs, air & electrical connections for spreader bar & flip axle

GENERAL:
12 Volt System with 7 way Sealed Harness
LED Sealed beam Lights w/ Modular Harness
Strobe light package with toggle switch on rear
Epoxy Primer & Black Polyurethane Paint
Flag & Flag Holders - 2 Pairs - front deck and rear of trailer
Mid-Turn Signal/Clearance Light
KS Mud Flaps Oversize load sign Brackets
Red & White Conspicuity tape

OPTIONAL EQUIPMENT:
Base Trailer - 3 Axle 55T
Single Axle Flip
13HP Power Pack (+ Div.) ILO Chain Hanger
Aluminum Outside Wheels all Axles
Battery Backup for Strobe Lights
