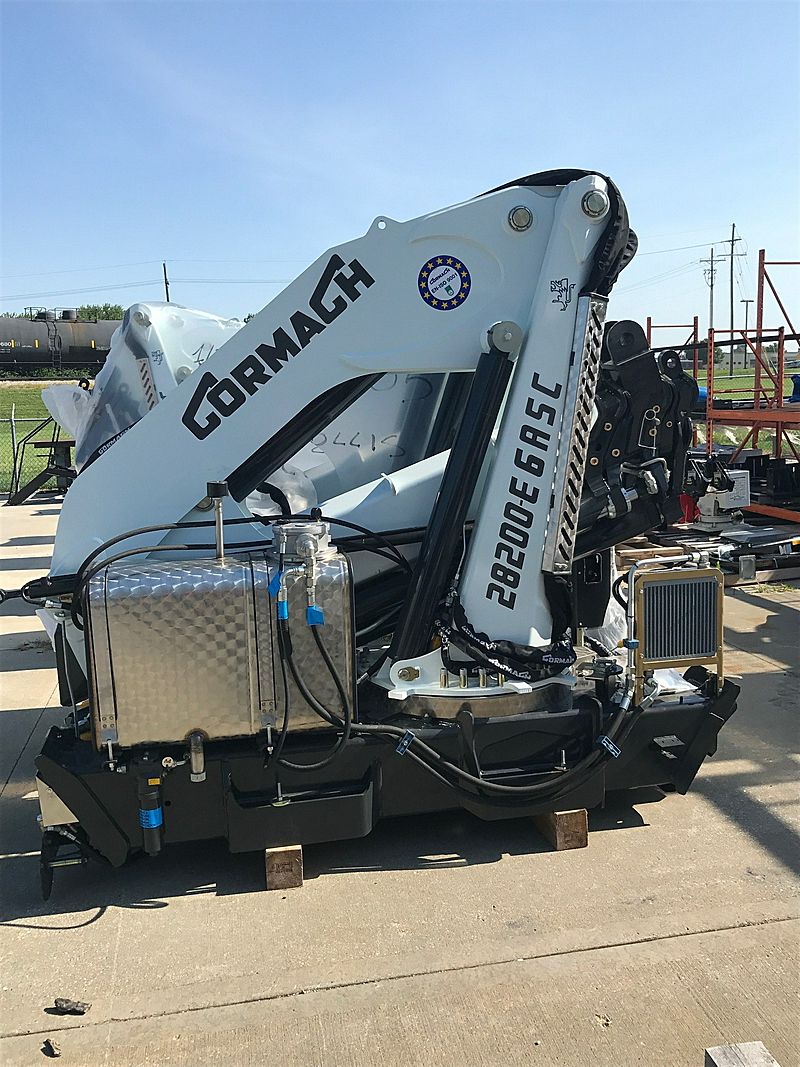

Model 28,200 E6 ASC - RR
Lifting Moment223,850 ft/lbs
Hydraulic reach50’10” – 2513 lbs. capacity.
Hydraulic out and down outriggers (Tiltable) 19'2"
Standard outrigger feet
420 DEGREE NON – CONTINUOUS ROTATION
40 gallon oil reservoir with filters (removable) –
STAINLESS STEEL Oil cooler – heavy duty High pressure filter Manual controls on
one side One additional function to the tip of the boom Danfoss Proportional
control valves with actuators SCAN RECO radio remote controls Suspension
attachment for auger connection per V&H drawing Load limit device Automatic
Speed Control system Load holding valves on all cylinders JIC Fittings on all
hose and pipe connections U.S. load charts Load hook
