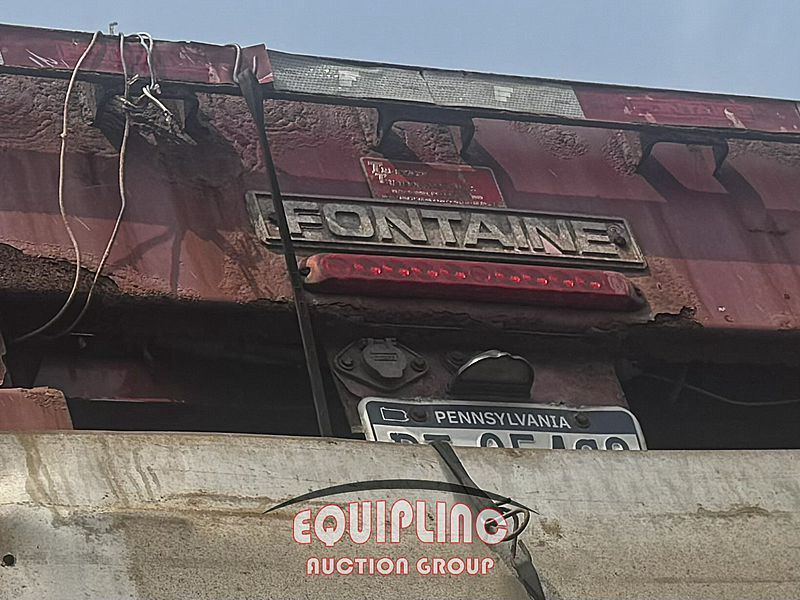

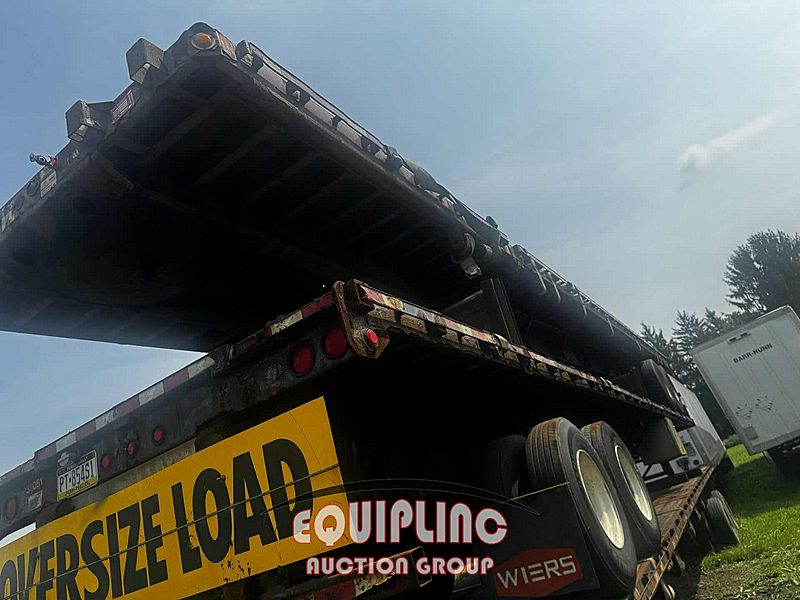

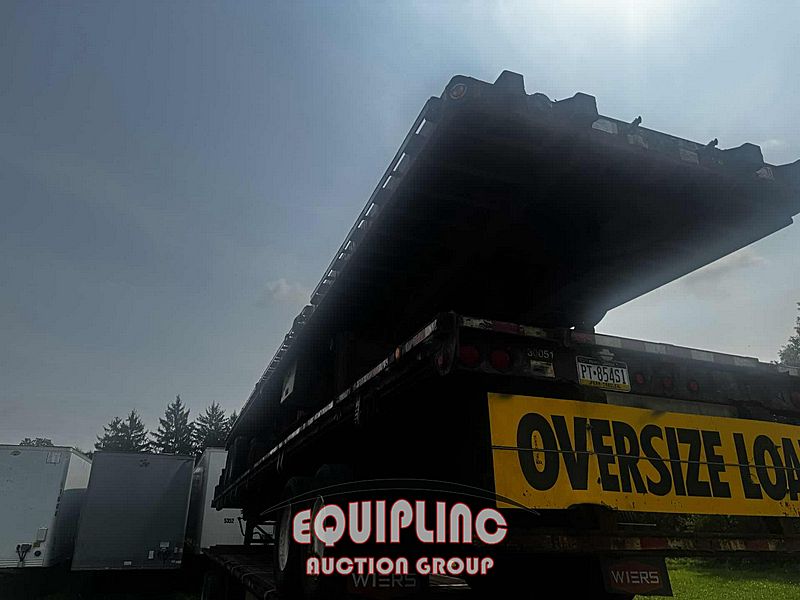

2012 Fontaine EXTENDABLE

Frame Capacity

• 80,000 lb distributed frame rating (Legal payload determined by GAWR & tire ratings.)

Dimensions

• Kingpin height: 49"
• Width: 102"
• Front deck length: 11'
• Total length: 48' to 80' adjustable
•


Operating Features

• Stop locations every 5 feet
• Air‑operated pins with additional locking pins

• Air & electrical lines inside the track for protection and reduced maintenance

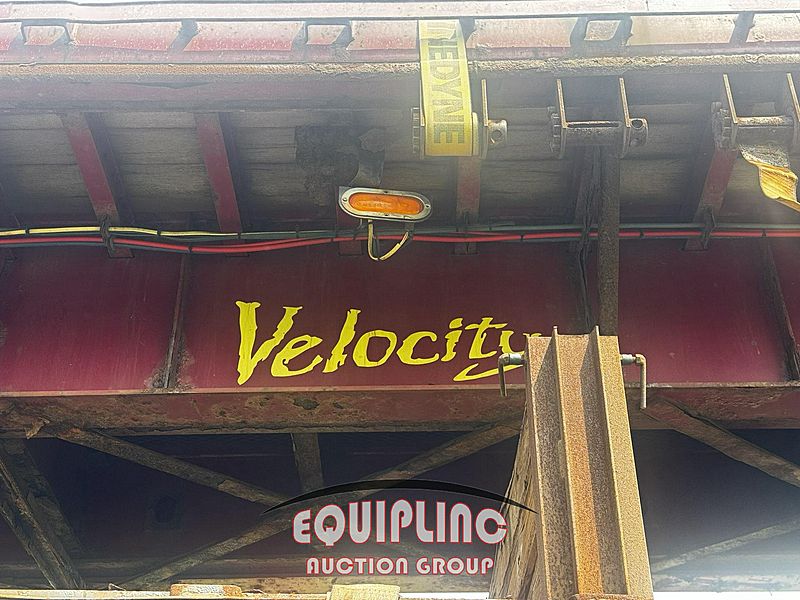

Main Beams

• Strongest main beam in the industry
• High‑tensile steel fabricated I‑Beam inner & outer beam

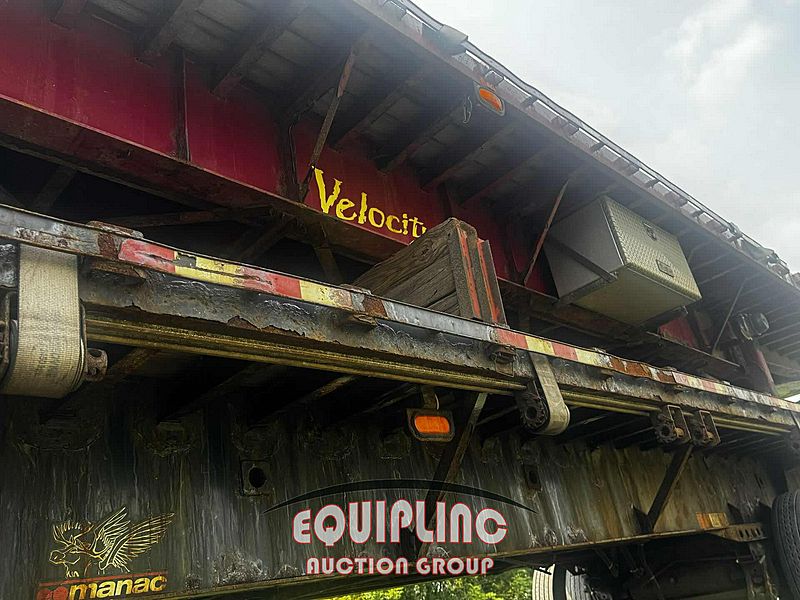

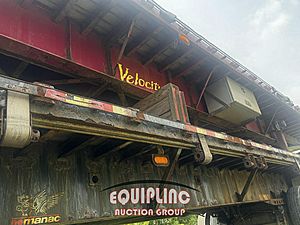

Siderails

• 6" structural steel channel
• Stake pockets on 24" centers
• 2.5" rolled rubrail with recess for conspicuity tape
• Pipe spools between stake pockets

Flooring

• 1 1/8" Apitong hardwood
• (2) 5/16" x 2" Torx screws per board per crossmember

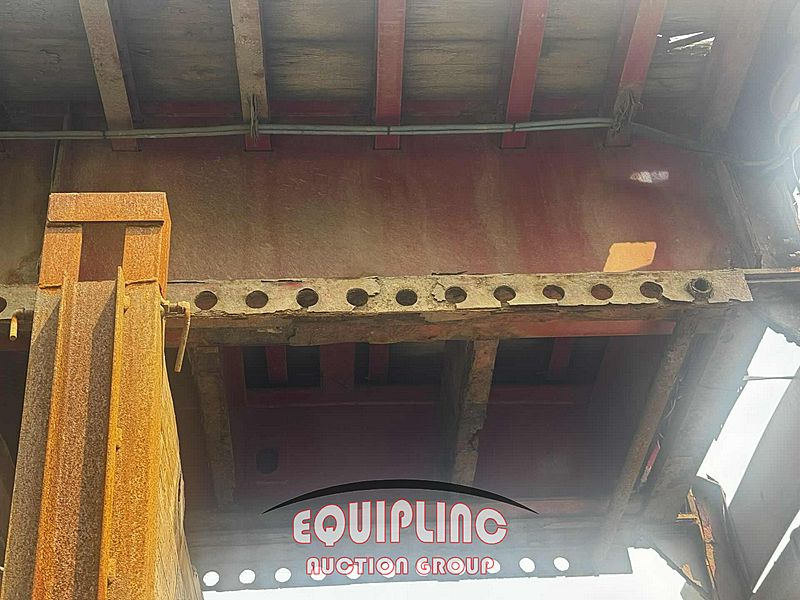

Crossmembers

• Single‑piece full‑width
• 4" x 3.19 lb steel I‑Beams on 12" centers
